Packout Drawer M18 Brad Nailer 18g (DIGITAL 3D PRINT FILE ONLY)

THIS IS A DIGITAL STL FILE FOR 3D PRINTING NOT A PHYSICAL PRODUCT. You will not receive a physical product, this is a digital 3D file so you can personally 3D print your own insert.

This is a custom insert that I have designed to fit your Milwaukee Packout Drawers to store your M18 FUEL 18 Gauge Brad Nailer. It specifically fits the Milwaukee 2 & 3 Drawer units (48-22-8443 & 48-22-8442).

This is the specific tool the insert is designed for: https://www.milwaukeetool.com.au/power-tools/nailers/finishing-nailers/M18FN18GS-0C.html

This is the ultimate modular storage solution for your Packout Drawers! I have taken the time to include options for 60 different removable organiser tubs that you can insert to organise your brad nails and other kit!

Super Flexible Design:

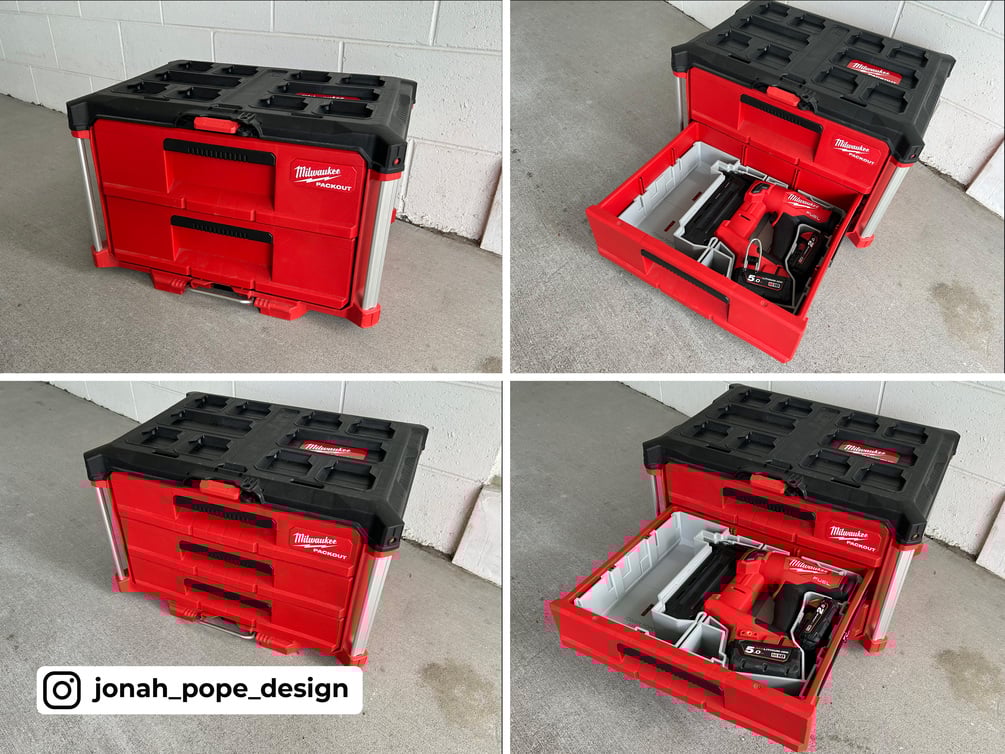

I've taken great care to ensure that you can store your Brad Nailer in both the 2 drawer AND 3 drawer Packout units! If you are using the belt hook, you will need use the 2 Drawer Packout.

If you don't use the belt hook, the Brad Nailer & insert will fit in the 2 and 3 Drawer Packout. You just can't fit the nailer with the belt hook in the 3 drawer, the hook just sits way too high for the drawer to close.

If you do use the belt hook, options are included to accommodate either side of the tool that the hook is mounted to.

If your belt hook is on the same side as what is pictured above (the left side) you will need to print the "Standard" files. If your belt hook is on the opposite side of the tool, you will need to print the "Mirrored" files which are the same designs except mirrored. This ensures that your tool will sit in the insert with the hook facing up.

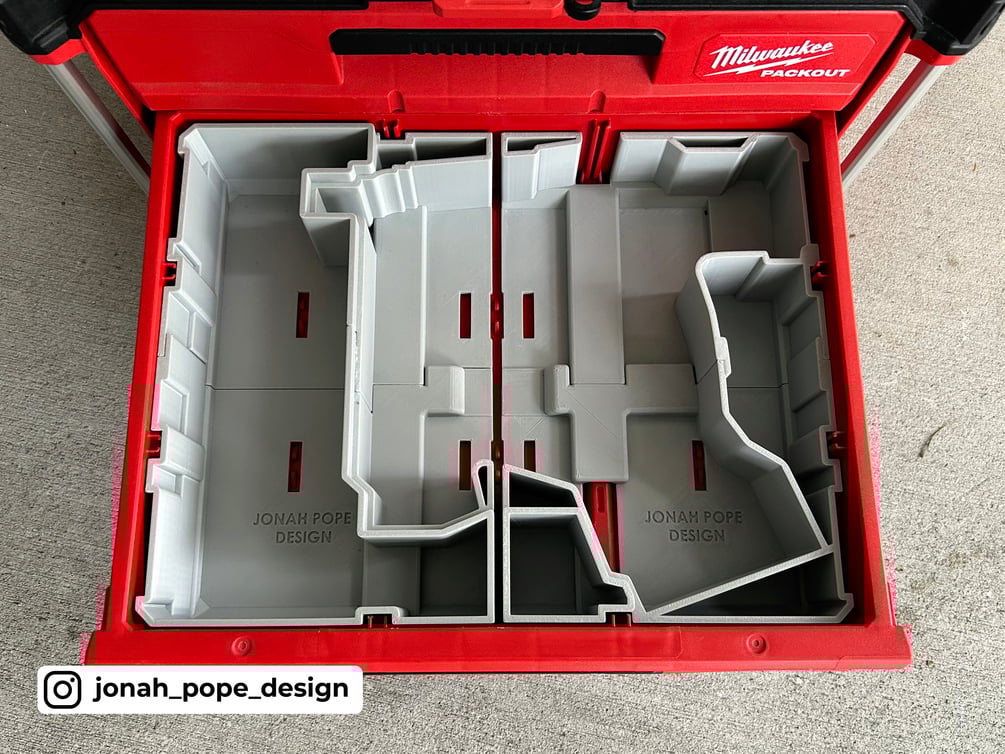

Also, please do not glue the left and right inserts together in the centre. There is supposed to be a gap as seen in the photos here. This is intentional allows for some flexibility due to manufacturing variations on the sizes of drawer internals.

3 DRAWER PACKOUT NOTE:

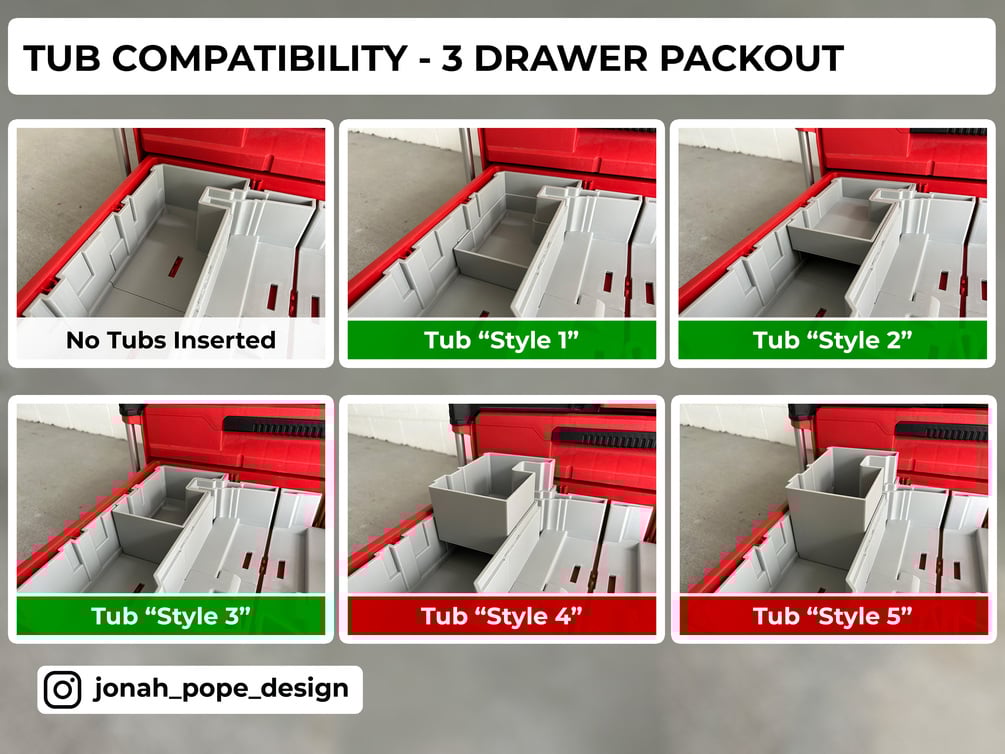

The Brad Nailer Insert will only fit the 3 Drawer Packout if you print the "Standard" files. The "Mirrored" inserts won't be able to fit, This is due to the nailer/tool being asymmetrical. The nailer fits perfectly with the "Standard" files as the protruding section sits down in the valley between the ridges present in the bottom of the drawers. When using the "Mirrored" insert in the 3 drawer Packout, this protruding part of the tool now is facing upwards and will prevent the drawer closing as it is a shallower drawer.

This shouldn't be an issue though, if you don't use a belt hook, then you would be printing the "standard" files already.

Tubs:
As mentioned above, I have 60 different organiser tub options for you to pick from! There's 5 different "types" of tubs. Each of these consist of a front half and back half design to fit around the nailer (tubs can seen on the left of the insert in the photos).

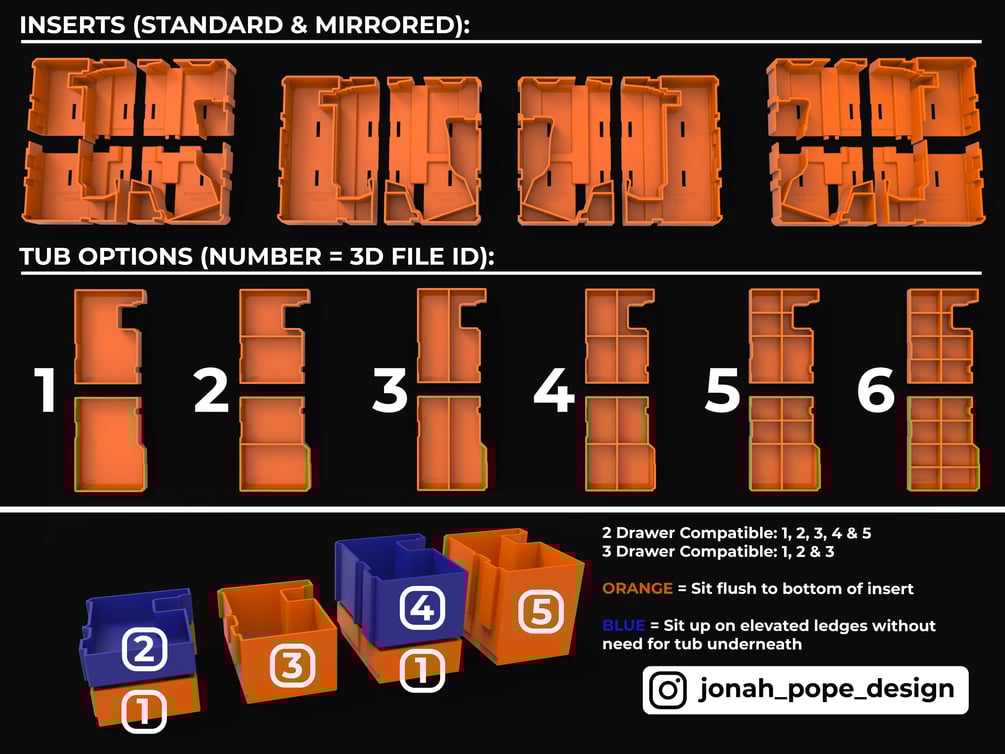

Each of these tubs then has 6 different options for how you'd like them divided up for sorting all your kit! Photos are included in the listing gallery showing a visual breakdown of the different options but, I'll summarise here as well.

• 2 Drawer Compatible Tubs - 1, 2, 3, 4 & 5
• 3 Drawer Compatible Tubs - 1, 2 & 3

I've also included tubs that sit on elevated ledges, meaning for the tubs that have two layers, you could just use the topmost layer and keep the bottom of the insert free for longer items.

• Elevated Tubs - 2 & 4
• Tubs that sit flush to the bottom of the insert - 1, 3 & 5

File Sizes/Dimensions:

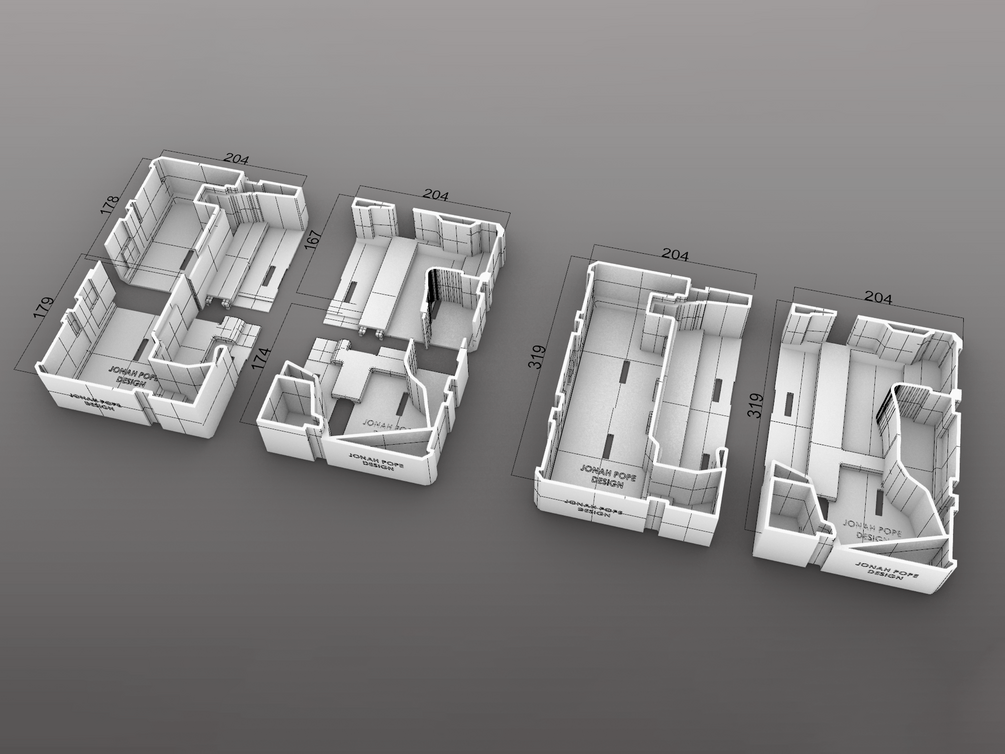

These are large parts, so you may need to slice them up smaller to get them to fit on your printer. If you would like to see the size of each part, look the at last image above which is dimensioned. If you print the files that have been split already, I have included spots in the print where the two halves will interlock to allow for easy application of super glue to attached the two halves together.
