Packout Drawer M18 Gen 4 Drill & Impact (DIGITAL 3D PRINT FILE ONLY)
THIS IS A DIGITAL STL FILE FOR 3D PRINTING NOT A PHYSICAL PRODUCT. You will not receive a physical product, this is a digital 3D file so you can personally 3D print your own insert.

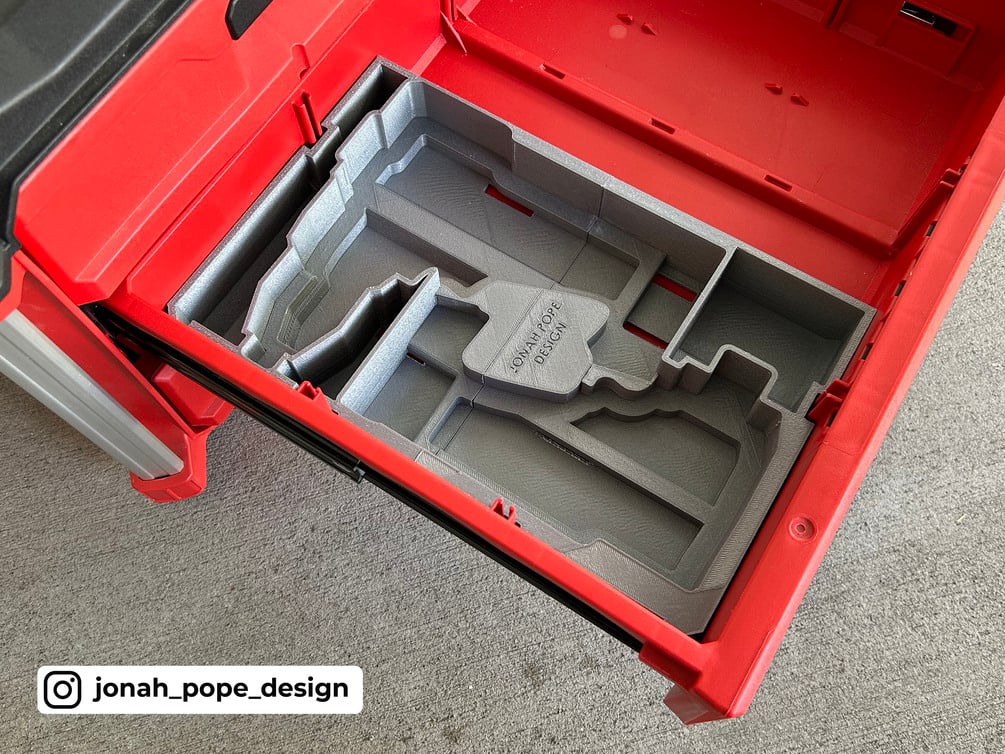

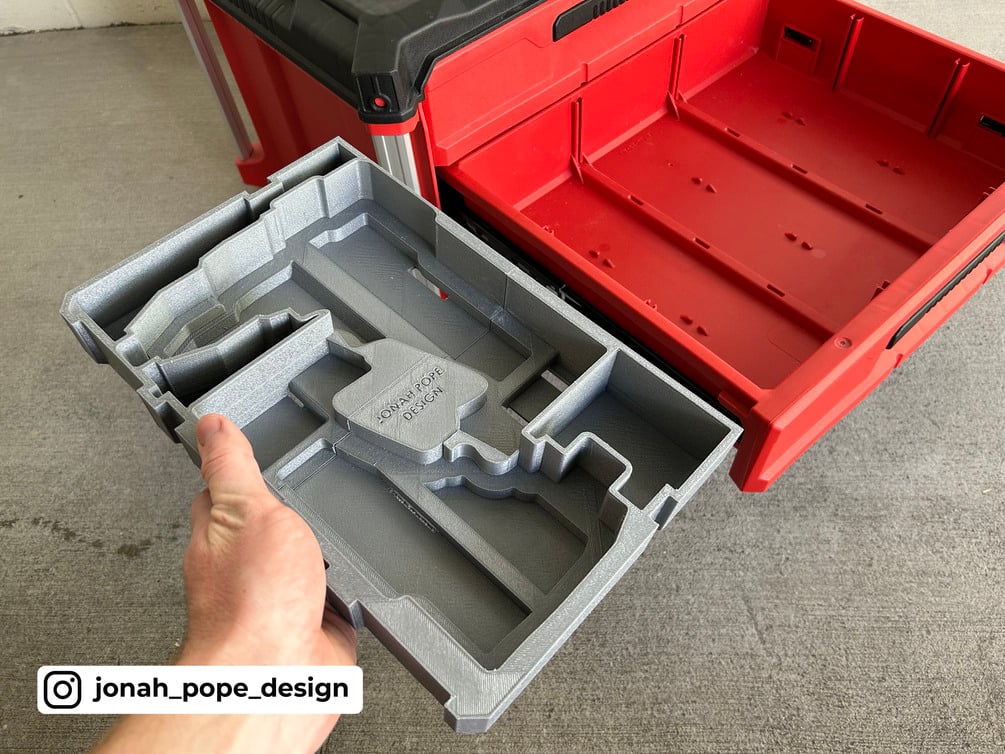

This is a custom insert that I have designed to fit your Milwaukee Packout Drawers to store your M18 Gen 4 Hammer Drill and Impact Driver. It specifically fits the Milwaukee 2 & 3 Drawer units (48-22-8443 & 48-22-8442).
These are the specific tools the insert is designed for:

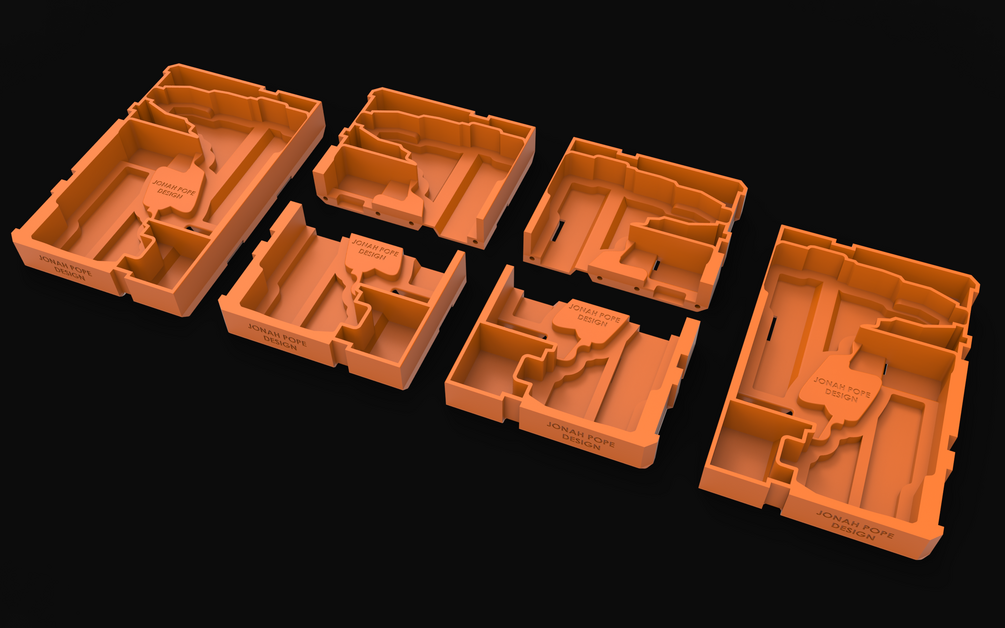

This is the ultimate modular storage solution for your Packout Drawers! Files are provided for having your insert on either the left or right side. I will have many more designs to share for the drawers soon so you can mix and match your inserts to set up your own perfect drawer units!
DRIVER BIT HOLDER NOTE:
I have also included recessed areas to accommodate the stock driver bit holder as best as possible. The drawers have ridges in the bottom which I had to design around; thus, I was limited with how much space I could provide. Whether the skin fits will depend on the length of the driver bits you want to insert into the holder. If you need to remove them prior to inserting the tool, there are extra storage spots included around the design as well as underneath where the tools sit.
BELT HOOK NOTE:
If you use your M18 Gen 4 tools without the belt hook, you will be able to place the insert into the 3-drawer unit. If you use your Gen 4 tools with the belt hook, you will need to use the 2-drawer unit. Unfortunately, due to the distance the hook protrudes from the tool, it is not possible to fit the skin in the 3 drawer unit with the hook attached.
If your belt hook is on the same side as what is pictured above in the grid comparison photo (the left side) you will need to print the "left sided" files. If your belt hook is on the opposite side of the tool, you will need to print the "right sided" files which are the same designs except mirrored. By doing so, this ensures that your tool sits flat without the belt hook underneath which would prevent the tool sitting flat.
File Sizes/Dimensions:

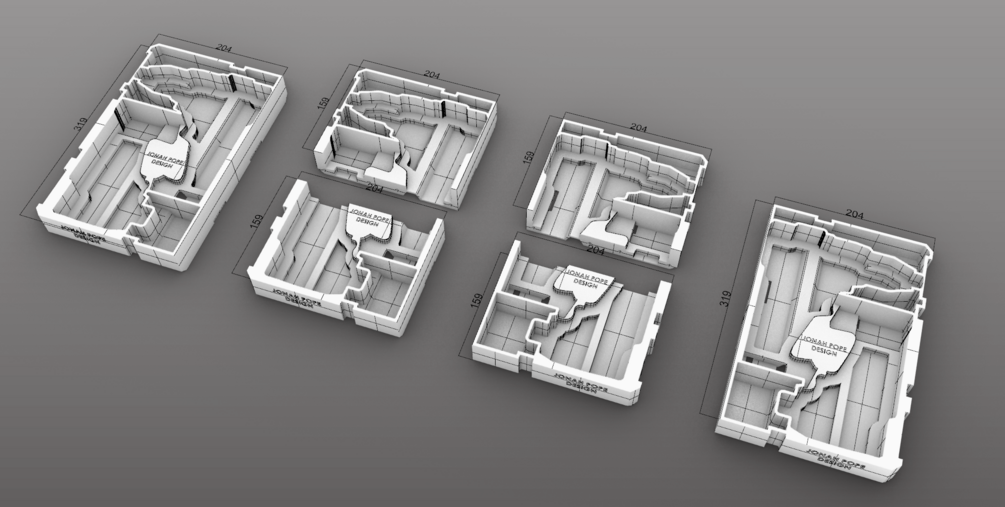

These are large parts, so you may need to slice them up smaller to get them to fit on your printer. If you would like to see the size of each part, look the at last image above which is dimensioned. If you print the files that have been split already, I have included 6mm holes in the designs for each half where you can glue in some threaded rod to reinforce your print.
TERMS OF USE
- This 3D file is strictly for personal use/3D printing only. It is not to be used for redistribution or for use in mass manufacture or profit in any form.
- The ONLY people authorised to sell physical prints using my designs/3D models are vendors who have contacted me in advance to discuss this possibility. I conduct this review process to ensure print quality and to review the reputation of the vendor. If you would like to discuss the possibility of joining as an approved vendor, contact me via my design email: jonahpopedesign@gmail.com
THIS IS A DIGITAL STL FILE FOR 3D PRINTING NOT A PHYSICAL PRODUCT
