Packout M18 Drill & Impact Gen 4 (DIGITAL 3D PRINT FILE ONLY)

THIS IS A DIGITAL STL FILE FOR 3D PRINTING NOT A PHYSICAL PRODUCT. You will not receive a physical product, this is a digital 3D file so you can personally 3D print your own insert.

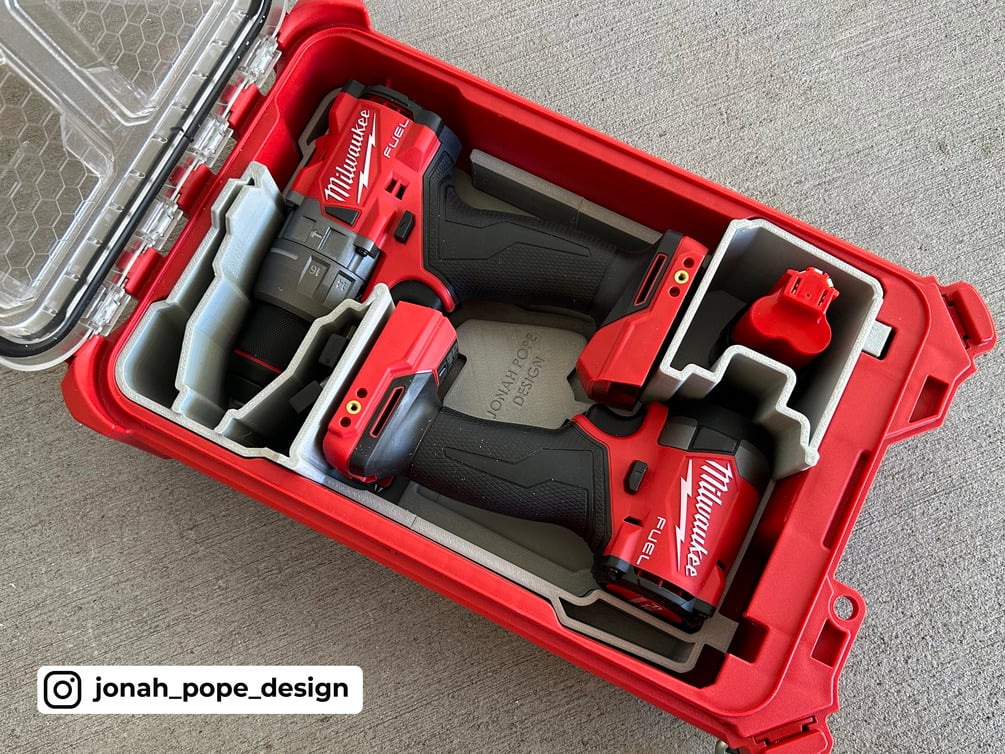

This is a custom insert that I have designed to fit your Milwaukee Packout to store your Gen 4 M18 Hammer Drill & Impact Driver. It specifically fits the Milwaukee 48228435 PACKOUT Compact Organiser.

These are the specific tools the insert is designed for:

• https://www.milwaukeetool.com/Products/2904-20
• https://www.milwaukeetool.com/Products/2953-20

DRIVER BIT HOLDER NOTE:

There are two variations of this design that are provided for you to pick from. One is the standard version (which is seen in the photos above) and the other is a mirrored version. The standard version accommodates your tool if you have your driver bit holder attached on the same side as what is seen in the photos above (the right side when holding the tool)

The mirrored files accommodate users who instead have their driver bit holder mounted to the opposite side (the left side when holding the tool). This way, you can pick the file that ensures that your bit holder is facing down when placed in the Packout.

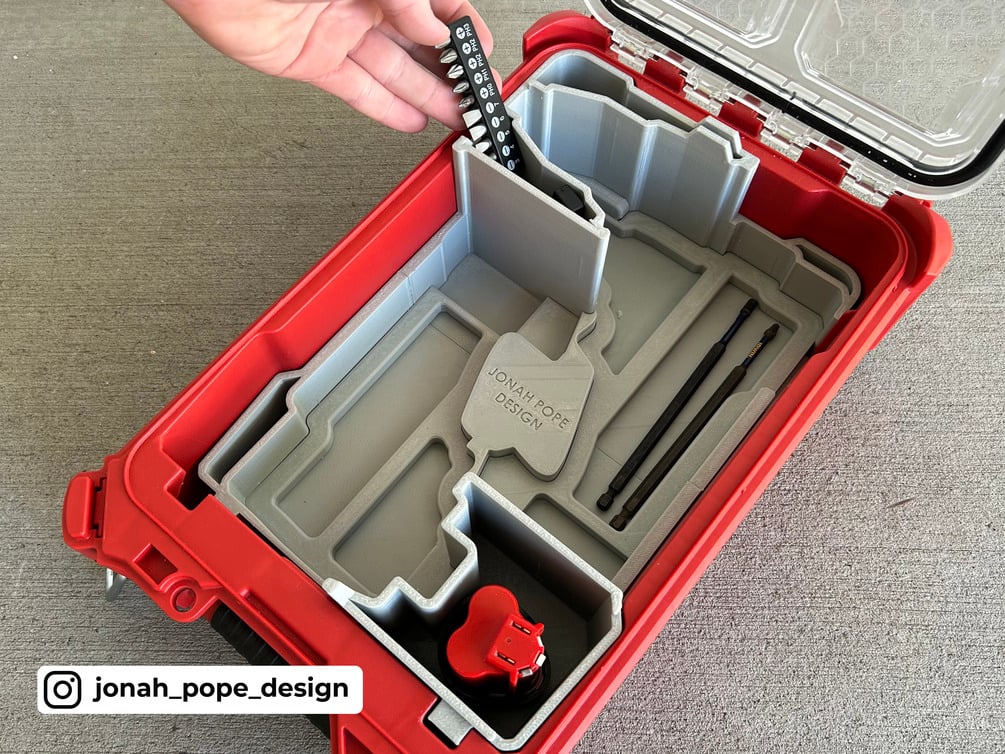

I've done this so that I could maximise the height of extra storage that is hidden underneath the tools and allow for even more storage of extra kit.

BELT HOOK NOTE:
Please note that both these skins won't fit in the Packout with the Belt Hook attached. It is physically too tall for the Packout internals even without the insert.

PART SIZES:

These are large parts, so you may need to slice them up smaller to get them to fit on your printer. If you would like to see the size of each part, look the at last image above which is dimensioned. If you print the files that have been split already, I have included 6mm holes in the designs for each half where you can glue in some threaded rod to reinforce your print.

TERMS OF USE

• This 3D file is strictly for personal use/3D printing only. It is not to be used for redistribution or for use in mass manufacture or profit in any form.
• The ONLY people authorised to sell physical prints using my designs/3D models are vendors who have contacted me in advance to discuss this possibility. I conduct this review process to ensure print quality and to review the reputation of the vendor. If you would like to discuss the possibility of joining as an approved vendor, contact me via my design email: jonahpopedesign@gmail.com
