Packout Drawer - M12 Angle Drill & Impact COMBO (DIGITAL 3D PRINT FILE ONLY)

THIS IS A DIGITAL STL FILE FOR 3D PRINTING NOT A PHYSICAL PRODUCT. You will not receive a physical product, this is a digital 3D file so you can personally 3D print your own insert.

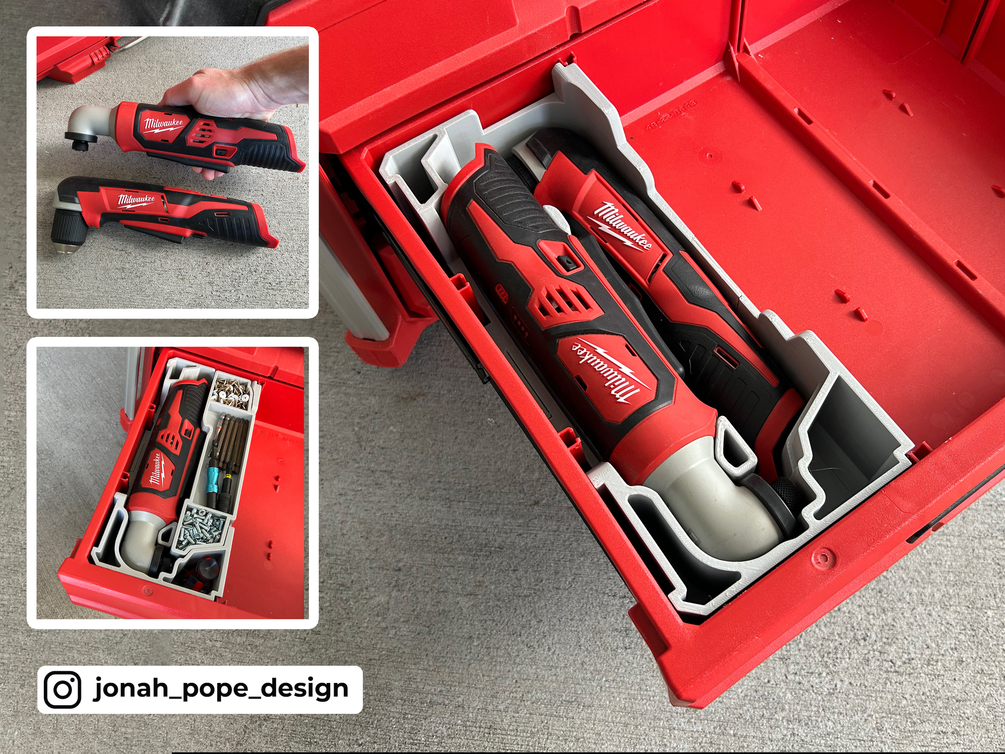

This is a custom insert that I have designed to fit your Milwaukee Packout Drawers to store your M12 Angle Drill (C12RAD-0) & Angle Impact (M12BRAID-0) . It specifically fits the Milwaukee 2 & 3 Drawer units (48-22-8443 & 48-22-8442).

These are the specific tools the insert is designed for:

• M12 Right Angle Drill - https://www.milwaukeetool.com.au/power-tools/drills/right-angle-drills/C12RAD-0.html
• M12 Right Angle Impact Driver - https://www.milwaukeetool.com.au/power-tools/impacts-and-fastening/impact-drivers/M12BRAID-0.html

Slimline - My Modular Drawer System!

My "Slimline" Packout Drawer system is dedicated to storing the smaller and slimmer Milwaukee M12 or M18 tools. Tools such as the M12 Angle Drill fit in a space much smaller than the standard half split so I developed this extra system to work in addition to my large Drawer inserts. Each new tool insert I design for my "Slimline" range will have 3 custom file variations included to accommodate your insert on either the left, middle or right section of the drawers.

Features - Super Flexible Design

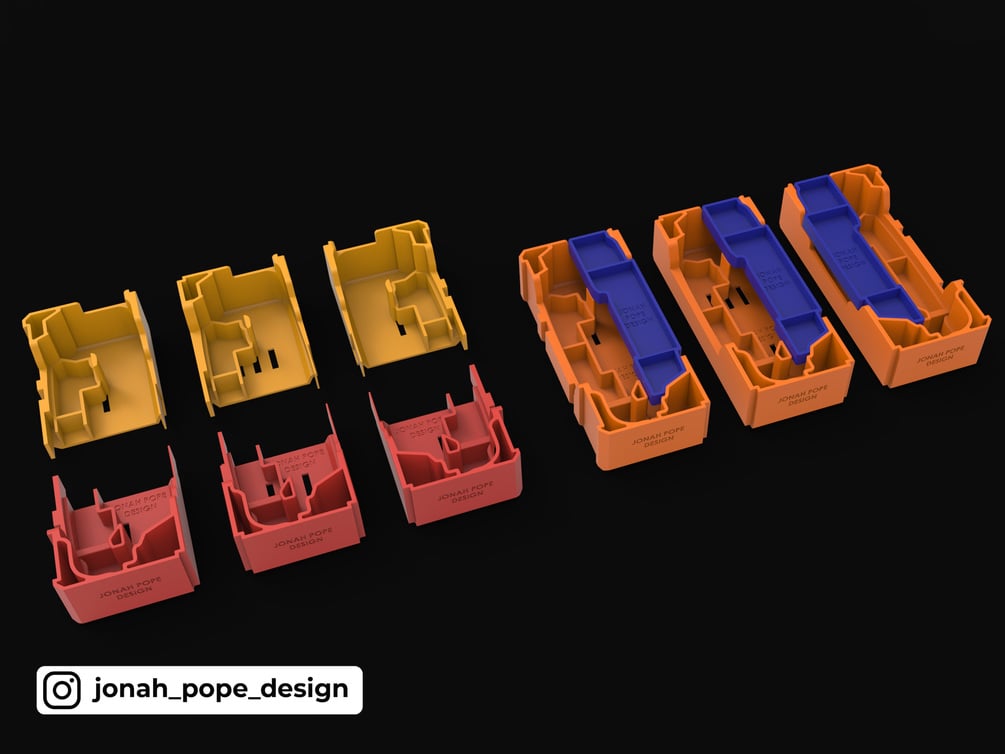

• Maximum Storage Space - x3 Files variants included to support the left, middle or right section of the drawer (pre-split or single part print files included for each). These files are custom designed to each section of the drawer to ensure you maximise the usable storage space.

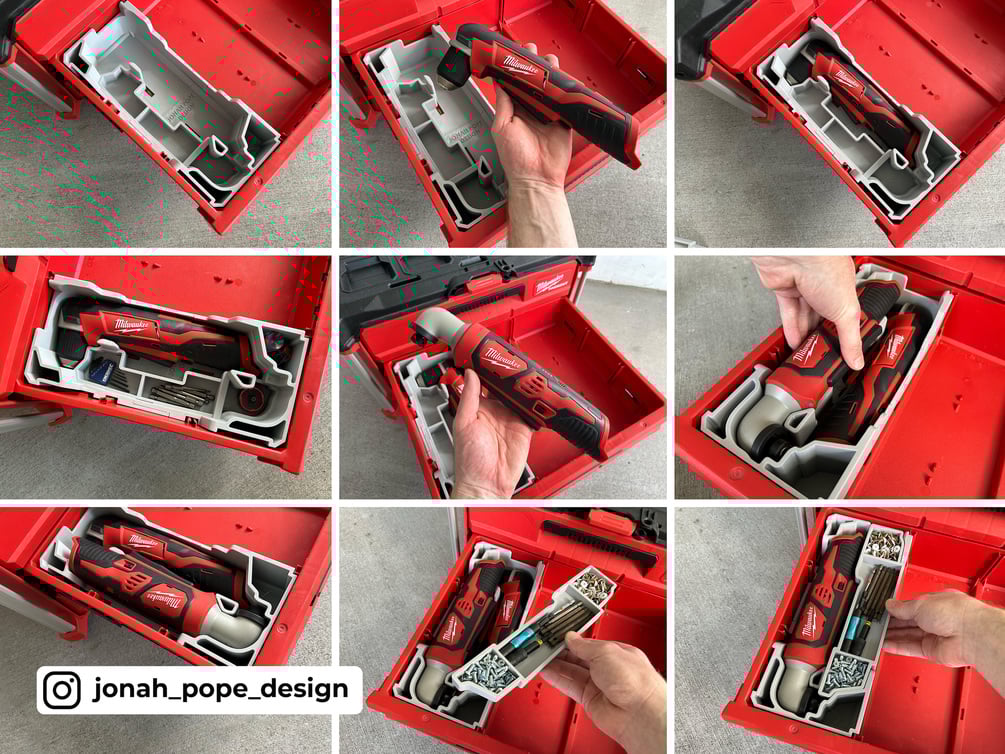

• Double Layer Design - Designed to maximise efficient use of space. By having the tools "stack" it allows for fitting them into a far more compact space. Additional storage trays are also provided underneath the Impact Driver

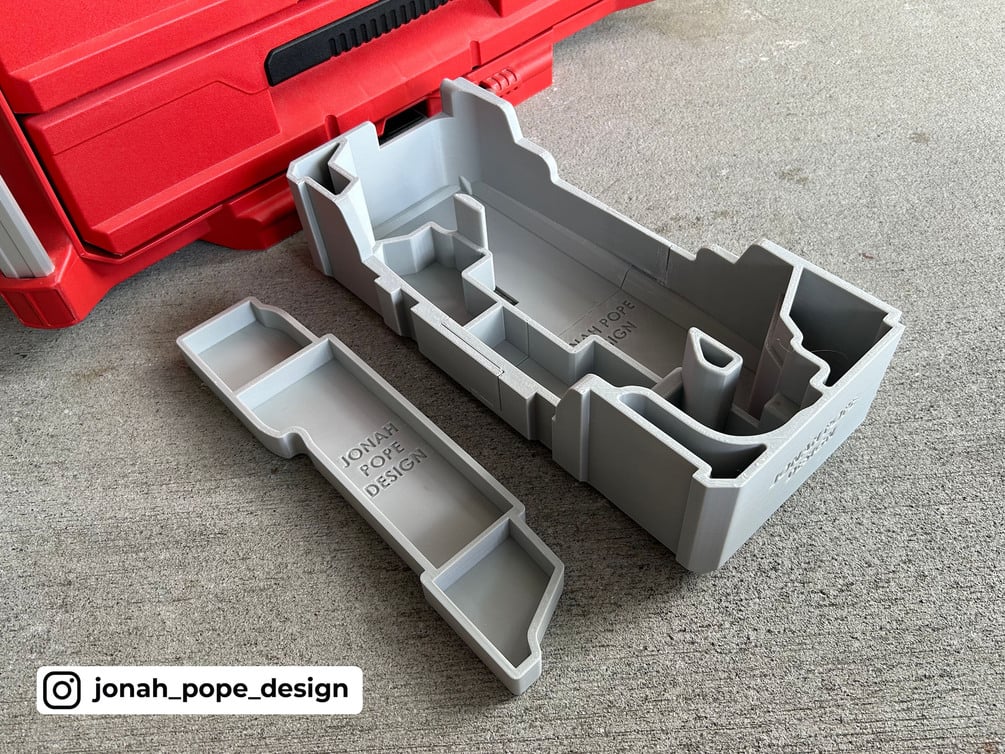

• Drop In Tray - I also designed a custom tray to sit above the Angle Drill should you like additional storage space. This tray sits in dedicated spots that support it, meaning it will still sit in place even if the tool itself isn't underneath it.
• 2 & 3 Drawer Support - The inserts have been designed to be compatible with both the 2 and 3 Drawer Packout units. They will be most effective when used in the 3 Drawer units as that is what the depth of the insert has been based on, although they will still fit the 2 Drawer if you'd prefer.

Important Notes:

• Stock Milwaukee Drawer Dividers - Since this a fully custom contained storage system, there's no need for the stock Milwaukee Drawer Dividers. These dividers would waste space which would allow for expanded storage space inside the inserts. Please remember that you can't use my inserts and the stock dividers at the same time.
• Slimline VS my Standard Drawer Inserts - As the "Slimline" Inserts split the drawer into thirds thus won’t be cross compatible with my larger drawer inserts that split the drawer into halves if they’re in the same drawer. Simply designate a drawer for containing Slimline or Standard drawer inserts. Designs for my “Slimline” system are labelled with the blue logo seen on the thumbnail or main cover image above.

FileFile Sizes/Dimensions:

These are large parts. Files are provided for both single part prints or printing in halves with my pre-split files. My pre-split files have sections included that allow the two halves interlock and allow for easy application of super glue.

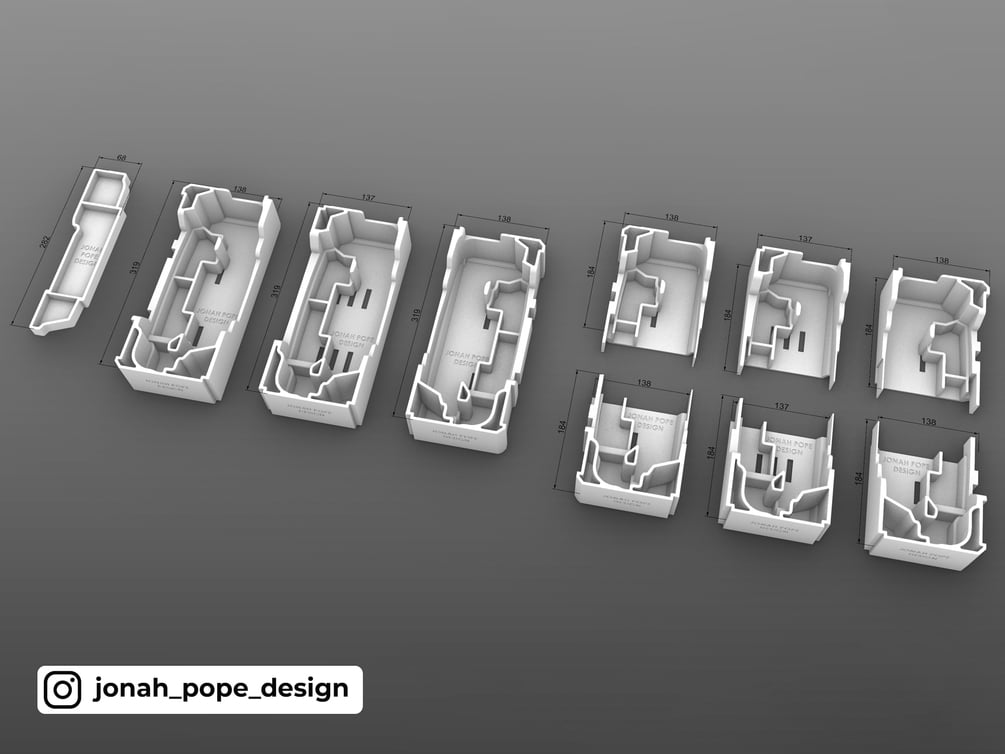

If you want to see the sizes of each part, please look the at last image in the gallery above to see photos with the part sizes/dimensions. If the pre-split parts are still too large, you may need to slice them up smaller, so they fit your printer.

TERMS OF USE

• This 3D file is strictly for personal use/3D printing only. It is not to be used for redistribution or for use in mass manufacture or profit in any form.
• The ONLY people authorised to sell physical prints using my designs/3D models are vendors who have contacted me in advance to discuss this possibility. I conduct this review process to ensure print quality and to review the reputation of the vendor. If you would like to discuss the possibility of joining as an approved vendor, contact me via my design email: jonahpopedesign@gmail.com
